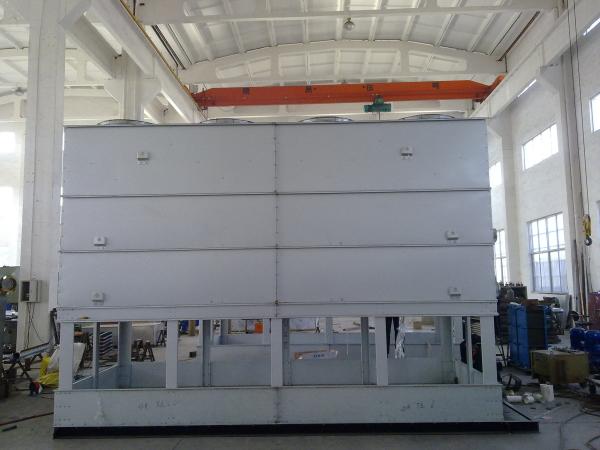

Energy Saving Closed Cooling Tower With Seamless 316L SS Cooling Coils

WORKING PRINCIPLE

1,Working fluid (water, oil o other liquid) flowing inside of the coils, which is enwrapped by spray water on the outside. The heat of water is transferred by coil and become the saturated vapor when meet the water and air.

2, the heat is exhausted out of the tower by the tower by the top fan; water is collected back to the bottom tank and circulates continuously. The spray water is cooled down via PVC radiation fin in the process of circulation, and flow is the same direction with the fresh wind. The coil mainly takes sensible heat travel style.

3, the most benefit of this style is can avoid scale formation on the outside of the coil. And this will apply especially to dealing with high temperature fluid (e.g. 60°C) or the fluid need big temperature difference (e.g. 60°C to 32°C).

Item

Main Features

1) Whole suit, it will convenient for customers to operate, and easy to transportation & installation..

2) structure is compact, installation area is less, and also more space is saved to enlarge the coils’ unit heat rejection area.

3) Energy efficient and environmental protection.Running in a high automatization and intellectualization,no pollution.

4) apply to the low cooling temperature(Temp.<45℃ or not higher than the location wet bulb temperature too much )or needs a small cooling range projects (△T=5-10℃)

5) Professional and serious attitude, and attention to detail is the pursuit of supremacy consistent high quality standards, production, products and services. This COUNTER FLOW mini cooling towerused for smelting furnace.

Product Application

1. Cooling Tower +Heat Exanger Combination

Closer approach to wet bulb temperature and reduce fouling, highly improve process efficiency

2. Air-Cooled Systems

10-20°C lower process temperatures ,less required space and lower energy consumption

3. Once –Through Systems

Reduces environmental impact ,saving up to 95% of the cooling water

4. Reduced installed Cost And Space Requirements

Effectively combines the function of a cooling tower and heat exchanger into one piece of equipment ,reduce required piping and system complexity.

Shanghai Yanye industrial Cooling Equipment Co., Ltd ( YANYE Cooling ) is a manufacturing plant for provision of various industrial & commercial cooling solutions. The system ranges from the cooling of water to gas, oil and miscellaneous industrial fluid mediums, with a strong emphasis on the manufacturing of closed circuit cooling towers and evaporative condensers.

Located in both Shanghai and Wuxi cities, YANYE Cooling owns one of the largest production scope of modern closed circuit cooling tower and evaporative condenser manufacture in China, covering an area of approx. 30.000 square meters, with an assembly workshop of 18,000 square meters.

With superb quality and exquisite manufacture technique, Yanye Cooling has won wide recognition from customers in the fields of heat treatment, metal & plastic melting, forging, air conditioning, compressor, power plant and chemical industries etc. With great reputation, WELL is honorable to have supplied her cooling systems to AGC(Japan), Saint-Gobain (France), Vaillant (Germany), Sanmina-SCI (USA), Danaher (USA), Stanly (USA), Aichelin (Austria), Mecaplast (France) and China Telecom etc global leading images.

With constant enthusiasm, YANYE COOLING team is working toward the goal of becoming one leading enterprise in the international lines.
