Professional Cooling Tower Condenser , Evap Condenser In Refrigeration System

Evaporative condenser is one of the most important parts of the whole refrigeration system. The condenser condenses the refrigerant gas inside the coil and complete a heat exchange circle. The evaporative condenser is widely applied to cold storage, ice-store, chemical industry, supermarket and etc.

YZFL-330F Specifications

Wind Cooling:

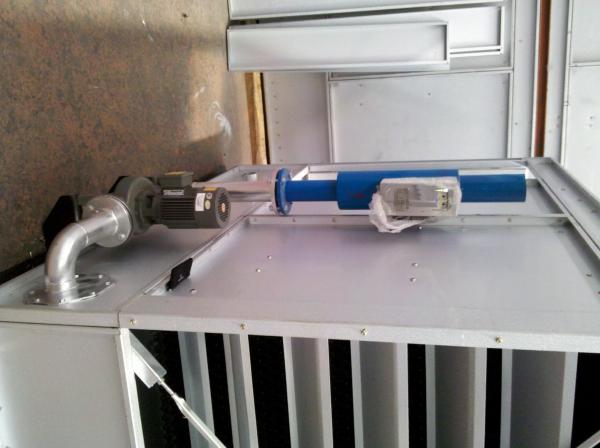

YZFL series evaporative condenser uses water and air as Cooling agent.The cooling agent exchanges the heat with High temperature gaseous refrigerant agent and hence the refrigerant agent becomes liquid.inside it has a water distribution system, condensing coils,wet deck ,dehydrator and so on. Outside it has a water circulating pump , a propeller fan on the top of condensing coil. The propeller fan strengthens the flow of the air and causes negative pressure inside. when the condenser runs,the cooling water is pumped and then sprayed by water distribution system On the surface of condensing coil equably to form a thin layer of water film.

Water Cooling:

The high –temperature steam of refrigerant agent enters from the top of condensing coil and then the cooled liquid refrigerant agent is discharged from the bottom of the condenseing coil .during this process,high temperature refrigerant agent exchanges the heat with the water and air outside the coil and increases the the effect of heat exchange with the help of wind .after aborbing the heat of refrigerant agent .some water turns into steam and is discharged by fan .meanwhile,the moisture in the

Air is collected by dehydrator to basin.and the ungasified cooling water flows into wet deck and its heat is taken away by the airflow .the cooled water converges in the basin to be used circularly by the pump.

In addition,there is a ball cock in the basin .when the water is consumed to a certain point the ball cock

Will automatically open to replenish the cooling water.

Shanghai Yanye industrial Cooling Equipment Co., Ltd ( YANYE Cooling ) is a manufacturing plant for provision of various industrial & commercial cooling solutions. The system ranges from the cooling of water to gas, oil and miscellaneous industrial fluid mediums, with a strong emphasis on the manufacturing of closed circuit cooling towers and evaporative condensers.

Located in both Shanghai and Wuxi cities, YANYE Cooling owns one of the largest production scope of modern closed circuit cooling tower and evaporative condenser manufacture in China, covering an area of approx. 30.000 square meters, with an assembly workshop of 18,000 square meters.

With superb quality and exquisite manufacture technique, Yanye Cooling has won wide recognition from customers in the fields of heat treatment, metal & plastic melting, forging, air conditioning, compressor, power plant and chemical industries etc. With great reputation, WELL is honorable to have supplied her cooling systems to AGC(Japan), Saint-Gobain (France), Vaillant (Germany), Sanmina-SCI (USA), Danaher (USA), Stanly (USA), Aichelin (Austria), Mecaplast (France) and China Telecom etc global leading images.

With constant enthusiasm, YANYE COOLING team is working toward the goal of becoming one leading enterprise in the international lines.
