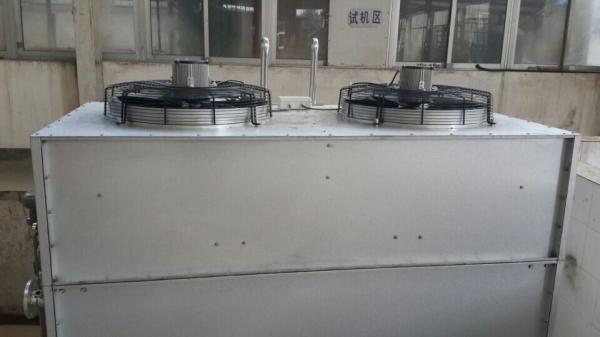

    Steel Casing Cross Flow Cooling Tower , Industrial Water Cooling System

    Ask Lasest Price
    Brand Name : Jiangfan Cooling/ Yanye Cooling
    Model Number : YCT/ YNT/ YKT/CLA/CLAB
    Certification : ISO 9001 2008
    Price : Negotiation
    Payment Terms : L/C, T/T
    Supply Ability : 400 UNIT/ MONTH
    Delivery Time : 68 Working days
    • Product Details
    • Company Profile

    Steel Casing Cross Flow Cooling Tower , Industrial Water Cooling System

    Steel Casing Cross Flow Cooling Tower , Industrial Water Cooling System


    Cooling water tower,Intermediate frequency electric stove cooling tower


    In addition to other square cross-flow cooling tower features, water cooling towers has their unique in the fan and underwater sound treatment. water cooling towers is adopted high quality motor. And the fan is adoption our latest testing and research of large chord,low revs,large blowing rate and high strength aluminum alloy silence style. The water cooling towers has advantage of low noise operation when compare to other factory cooling tower.The noise is below at least more than around 5dB(A).
    In terms of workmanship about fill.We using the latest development and testing result PVC with anti-ultraviolet and chemical attack resistance.This fill has feature of easy assembling,good rigid,Low Wind-resistance and excellent thermal performance.
    Steel frame is made of national standard high-quality angle steel and channel with high strength and good durability. In the other hand,all of the steel bracket is after galvanized processing with good preservative effect and long working life.


    DescriptionClosed Cooling Tower, Counter flow
    ModelYCT-04
    Operating Conditions
    Nominal Flow Rate (m3/h)30
    Inlet/Outlet DN (mm)65
    Cooling Capacity (Kcal/h)110000 Kcal/h
    Unit Heat Rejection (KW)128
    Unit Fan Motor (KW)1.5 kw*2
    Unit Airflow (m3/h)20000*2
    Spray Pump’s Delivery Lift (m)8
    Spray Pump Power (KW)0.75 kw
    Spray Water Flow Rate (m3/h)28 m3/h
    Main Water Pump’S Delivery Lift (m)32
    Main Water Pump’S Power (KW)2.2
    Main Water pump’s Flow Rate (m3/h)6.3
    Operation Work pressure0.15--0.45 Mpa
    Unit Dimension L × W × H (mm)2800*1250*2750
    Shipping Weight (kg)1180
    Operation Weight (kg)2080

    Product Advantages


    Compatible with numerous process fluids
    (water, water/glycol, oil, other fluids)

    ◆ Capable and flexible in customized solutions
    ◆ Factory assembled for maximal installation convenience
    ◆ Modular design suits a wide range of heat rejection duties
    ◆ Compact design with minimal footprints
    ◆ Multiple corrosion resistant options
    ◆ Low sound operation options available
    ◆ More optimizing options available
    ◆ Performance and quality guaranteed
    ◆ Super long service life
